Precision · Efficiency · Clean Power
Low Noise Operation
Simple Mechanical Structure
Fast Bending and Return Speeds
Smart CNC Control
Easy Maintenance
Stable Welded Frame
Eco-Friendly Manufacturing:
Fully Servo-Driven:
No hydraulic system – clean, eco-friendly, and oil-free.
High Precision Ball Screw Drive:
Delivers accurate and stable performance under heavy loads.
Energy Efficient:
Saves over 30% energy compared to traditional hydraulic models.

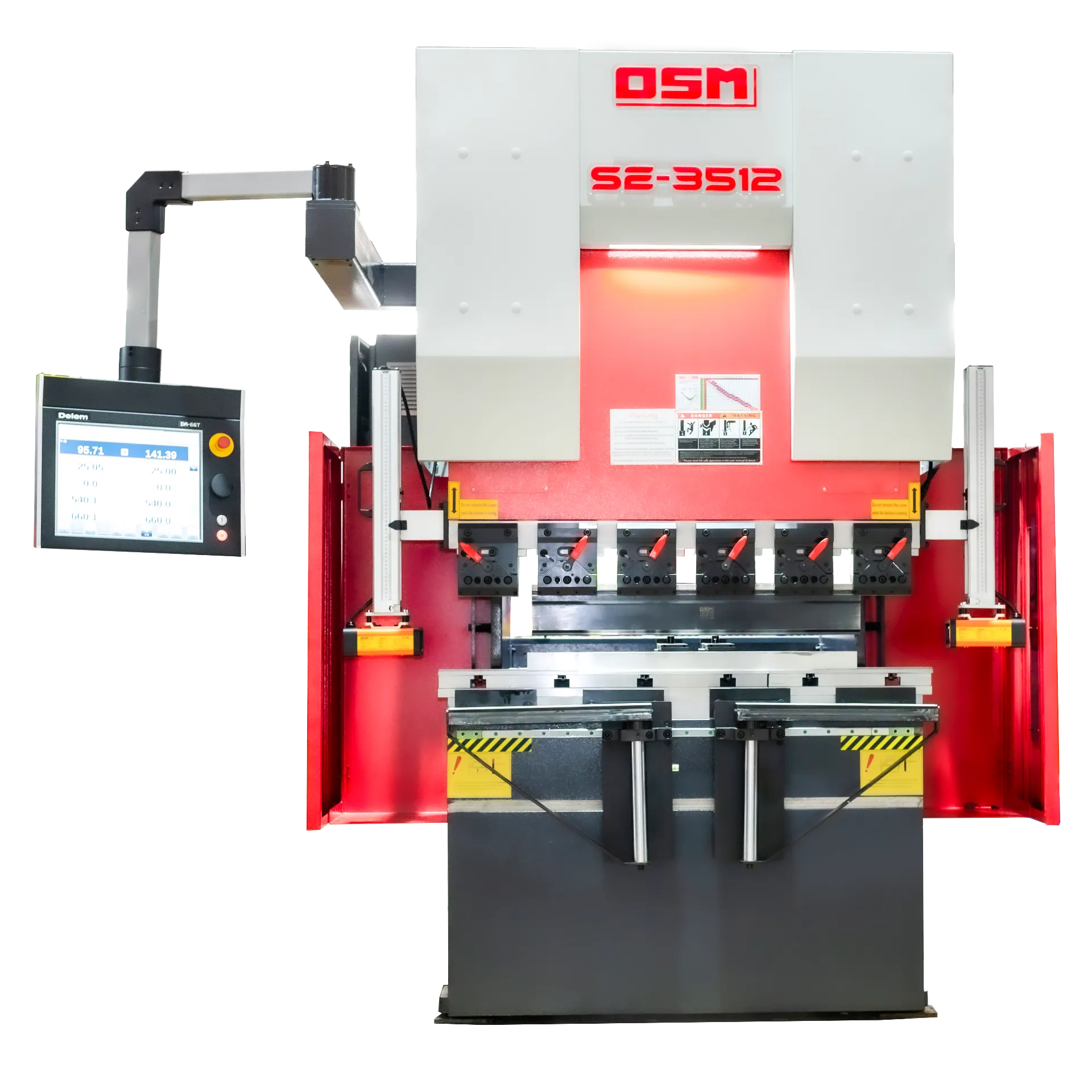

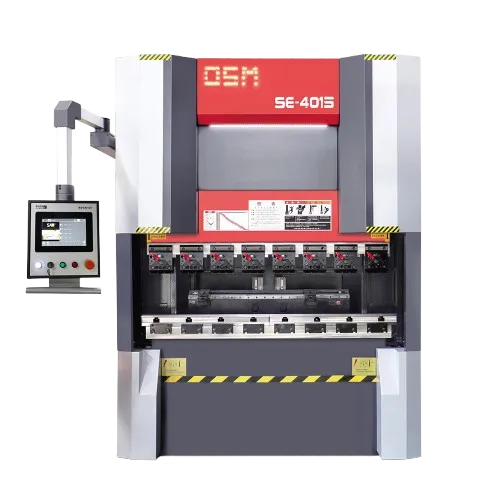

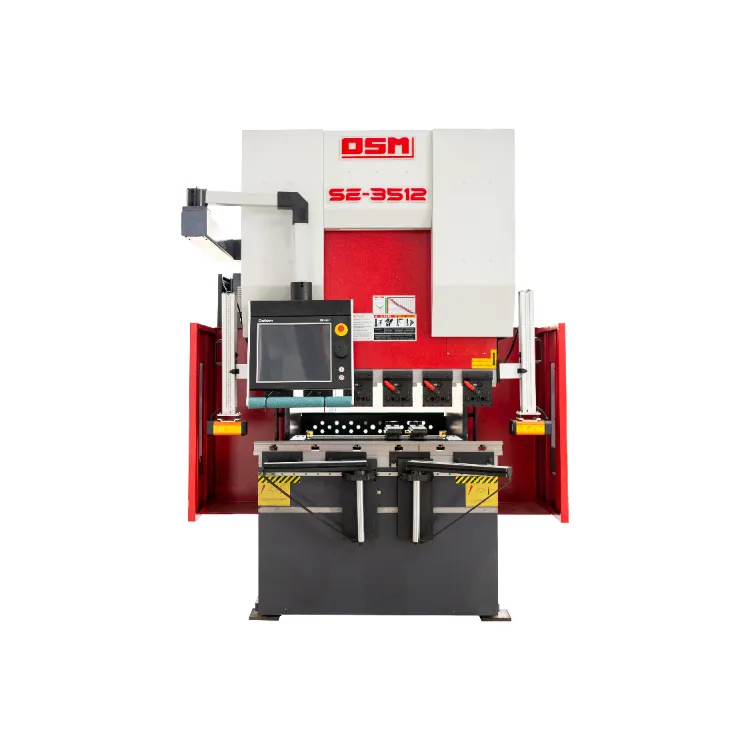

Model: SE Series
Product Overview:
SE series upper-drive fully electric servo bender uses dual servo motors to direct-drive heavy-duty ball screws, with closed-loop control for real-time position calibration (±0.02mm accuracy, millisecond torque response). Fully electric design reduces complexity (60% lower failure rate, 50% lower maintenance). Auto backgauge with multi-axis servo (1/2/4-axis) and CNC path planning enables complex thin-plate bending.
Application：
Targets high-end sectors: automotive sheet metal, new energy battery casings, 5G filters, aerospace titanium parts. Processes aluminum/stainless steel/high-strength steel, covering single-piece to mass production. Zero hydraulic pollution, low noise, and high energy efficiency suit clean workshops and precision sheet metal, especially medical/electronics sectors with strict cleanliness needs.
| Item | Unit | SE-1608 | SE-3512 | SE-4015 | SE-6020 | |
| Nominal Force | KN | 160 | 350 | 400 | 600 | |
| Workbench | MM | 800 | 1250 | 1500 | 2000 | |
| Daylight | MM | 450 | 450 | 480 | 480 | |
| Stroke Distance | MM | 150 | 180 | 180 | 180 | |
| Return Speed | MM/S | 160 | 180 | 190 | 170 | |
| Bending Speed | MM/S | 5-15 | 5-20 | 10-20 | 5-10 | |
| Approach Speed | MM/S | 140-160 | 170-200 | 150-200 | 120-170 | |
| Dimensions（Max.） | Length | MM | 1600 | 1700 | 2500 | 2400 |
| Width | MM | 1120 | 1670 | 1700 | 1800 | |
| Height | MM | 2360 | 2420 | 2500 | 2400 | |
| Total Capacity | KVA | 10.5 | 18.5 | 33.5 | 47.5 | |
| Single Motor Power | KW | 7.5 | 7.5 | 15 | 22 | |
| Total Controlled Axes | Pcs | 3 | 6 | 6 | 6/6+1 | |
| Gross Weight (Approx.） | T | 2.5 | 3.5 | 4.5 | 5.8 | |
The use of pedal switch,effectively reduce theworkintensity of the workers,improve the working efficiency.With a mechanical life of over 1 million cycles
High-sensitivity laser safety system with real-time monitoring capabilities immediately halts ram movement upon obstacle detection, preventing operator injury and fully complying with CE safety standards.
By using the direct control of the digital encoder, the height of the stop of the working table is directly controlled, in order to avoid unnecessary empty travel, greatly improve the production efficiency.
The upper tool quick-clamping device ensures straightforward and stable installation, prevents upper tool displacement, enables rapid release/clamping cycles, and significantly reduces setup time.
Dual-Servo Motor Synchronous Drive: Two high-performance servo motors synchronize to drive the worktable, delivering robust and stable reciprocating motion with strong load resistance—ideal for high-frequency, high-precision bending tasks.
Heavy-Duty Ball Screw Drive: Industrial-grade ball screws ensure high transmission efficiency, low friction, smooth operation, and extended service life. Handles both thin sheets and heavy workpieces with ease.
High-Precision Position Detection & Real-Time Feedback: Integrated high-sensitivity position sensors and CNC control enable real-time screw position monitoring, achieving ≤±0.03mm repeatable positioning accuracy for every bend.
Consistent Bending Pressure: Stable power output and precise position control maintain uniform pressure distribution across bends, minimizing angular deviations and enhancing product dimensional accuracy.
Smart Linkage Control System: Automatically adapts to process requirements, optimizing drive paths for faster response, lower energy consumption, and intelligent operation—boosting production efficiency.
The automatic back gauge system of the OSM press brake is driven by high-precision servo motors, featuring a dual ball screw and linear guide transmission structure for outstanding speed, stability, and positioning accuracy.
Our press brakes are welded into shape and then machined as a whole using a large gantry CNC machining center, ensuring superior precision and structural integrity.
Compared to traditional welded structures, the nested frame design eliminates distortion and deflection. It ensures stable geometry and maintains machining accuracy over long-term use.
The machine body welding process employs robotic automatic welding combined with manual touch-up welding.Every connection on the press brake frame is welded 10 times, strictly following Multi-layer and multi-pass welding standard for maximum strength and durability.
After the machine body is welded into an integral structure, it undergoes an overall tempering process at a temperature range of 400-650 degrees Celsius, ensuring high consistency in the strength of the machine body.
Once the mainframe is integrally fabricated, it is fully sandblasted and coated with one primer layer and two topcoats using eco-friendly water-based paint — ensuring excellent adhesion and a finish that never peels.
Made by high-manganese steel grades Q355 and Q235, which are of the same high-yield-strength steel type as that used in warships, submarines, and cross-sea bridges
The slow bending function allows you to set the bending speed for easy operation. You can also set the position where slow bending starts and the waiting time between steps, with support for digital settings or manual selection, improving processing flexibility and precision control.
The pull-back and bending function is activated after the mold clamps the material. It first performs an up-and-down movement to confirm that the material is securely clamped, thereby preventing interference with the material during the bending process and ensuring smooth processing.
The circular arc bending function enables automatic arc bending by entering spacing, converting steps into smooth curves with precision and consistency for sheet metal applications.
The line marking bending function ensures precise forming by positioning pre-drawn lines and optimizing parameters, molds, and intelligent systems, enhancing efficiency and consistency.

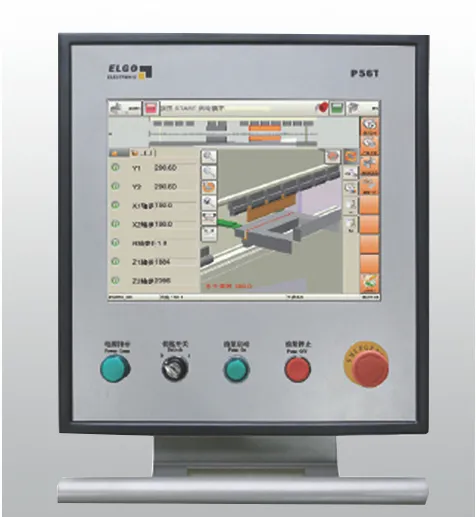

Features a high-definition color touch screen with embedded PLC, enabling 2D graphical programming, length calculation, and multi-mode operation (graphical tooling up/down, multi-process, telescopic configurations). Supports bending simulation and dual-machine coordination.
Equipped with a high-resolution TFT widescreen display and industrial-grade multi-touch interface for intuitive DELEM UI access. Ergonomic design with shortcut-key operation for simplified programming and user-friendly interaction.

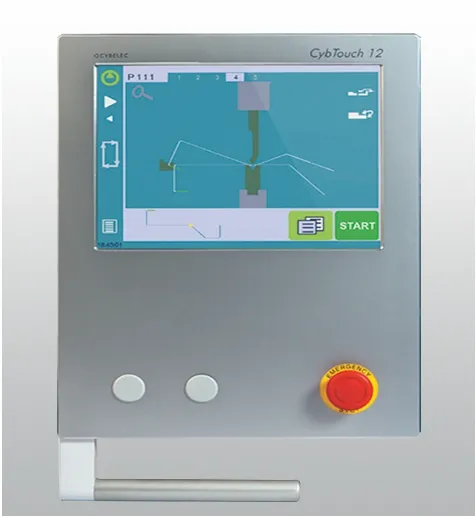

Features a full-touch HMI with 12/15" displays and next-gen controllers, offering high resolution, intuitive interfaces, and smooth operation. Supports 2D graphical programming, 3D bending simulation, DXF file import, efficient tooling editing, and switchable 2D/3D system modes.
Provides comprehensive functionality for press brakes, enabling quick calibration to match machine requirements. Stores multi-step bending processes and product data, supporting manual operation and advanced automation—a powerful yet user-friendly control solution.
The quality and precision of OSM's press brake are outstanding. We’ve been using it for eight months, and it still maintains exceptional accuracy without any deviation. The robust build and excellent craftsmanship make it a top-tier machine!
The energy-saving mode of OSM's press brake is impressive! Compared to our previous equipment, energy consumption has been reduced by 25%, while production efficiency has increased by 30%. It not only saves costs but also aligns with our green manufacturing standards.
We operate OSM’s press brake 24/7, and it remains highly stable with no need for frequent maintenance. Even under high-intensity production, there have been no malfunctions, significantly boosting our productivity! Their service is very good, remote support is always online.
OSM’s intelligent press brake is equipped with an AI recognition system that automatically detects material thickness and adjusts parameters, reducing manual intervention. It handles different materials and sheet metal shapes effortlessly, greatly enhancing production flexibility!
Our press brake is meticulously engineered for seamless compatibility with mainstream robotic arms, including models from ABB, KUKA, Yaskawa, and FANUC. It guarantees effortless integration into automated production lines while meeting Industry 4.0 standards. The system supports real-time communication, adaptive control, and intelligent coordination to enhance production efficiency and minimize manual intervention. Whether you need a solution for high-mix, low-volume production or large-scale manufacturing, ours delivers the flexibility and efficiency required by modern industrial applications.
