High Precision Bending – Accurate angles, consistent results
Strong & Durable Structure – Built to last for years
User-Friendly CNC System – Easy to operate, save labor
Energy Efficient – Lower power consumption, cost-saving
Fast Bending Speed – Improve your productivity
Customizable Solutions – Meet your specific needs
High Efficiency and Automation
High Precision and Versatility
Energy Efficiency, Environmental Protection, and Easy Maintenance
Precise and fast: ±0.05 mm accuracy with a cutting speed up to 10 mm/min.
Energy saving and eco-friendly: high-energy-efficiency laser with no pollution.
Smart control: advanced CNC for automated operation with consistent accuracy.
Flexible use: cuts complex graphics and irregular materials.
Rapid mold change with a tool library and memory system
Automatic loading/unloading and 24/7 operation
Multi-task processing: 1 machine replaces 3-5
Laser positioning + servo motor compensation, bending error ≤0.1°
Simulation preview: import drawings to simulate the bending process
Ultimate efficiency, reshaping processing speed
Micron-level precision, achieving perfect details
One-click intelligence, operation has never been so simple
Save materials and money, every cut counts
All-rounder, one machine handles complex processes

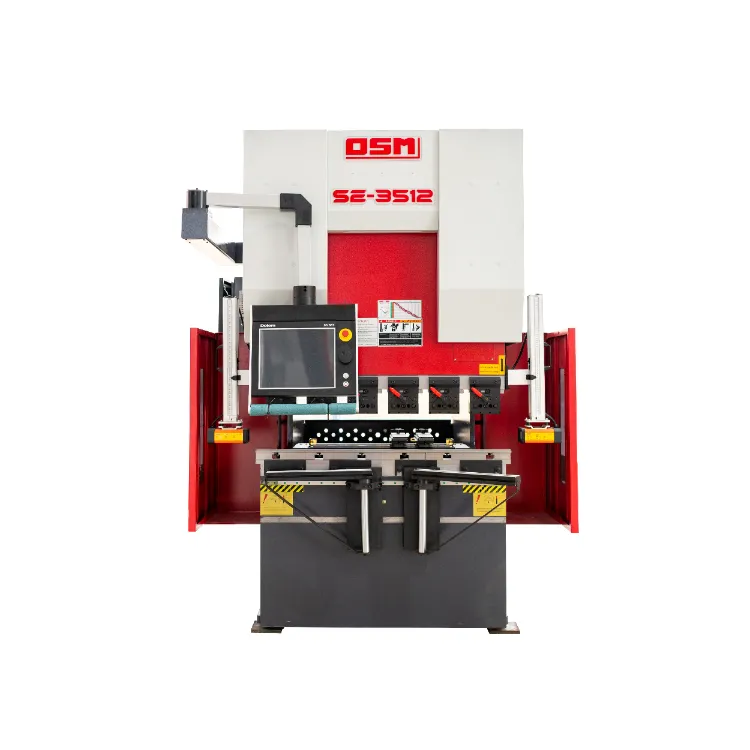

Model: SE-3512
Product Overview:
- Dual Servo Drive: Direct-drives high-precision ball screws with closed-loop control for real-time position calibration.
- Precision: ±0.02mm repeatability, millisecond torque response.
- All-Electric Design: Eliminates hydraulic systems, saving energy by 30%, reducing failures by 60% and maintenance by 50%.
- Multi-Axis Flexibility: 1/2/4-axis servo linkage module with CNC intelligent path planning for rapid, continuous bending of complex geometries.
- Performance: Optimized for high-speed thin-sheet processing (0.5–8mm thickness).
Application：
Available for complex parts for the automotive, energy, aerospace, and communication industries.
| Item | Unit | SE-3512 | |
| Nominal Force | KN | 350 | |
| Workbench | MM | 1250 | |
| Daylight | MM | 450 | |
| Throat Depth | MM | 350 | |
| Backguage Stroke | MM | 700 | |
| Stroke Distance | MM | 180 | |
| Return Speed | MM/S | 180 | |
| Bending Speed | MM/S | 5-20 | |
| Approach Speed | MM/S | 170-200 | |
| Backguage Moving Speed | MM/S | 400 | |
| Dimensions（Max.） | Length | MM | 1700 |
| Width | MM | 1670 | |
| Height | MM | 2420 | |
| Total Capacity | KVA | 18.5 | |
| Oil Capacity | L | / | |
| Single Motor Power | KW | 7.5 | |
| Total Controlled Axes | Pcs | 6 | |
| Gross Weight (Approx.） | T | 3.5 | |
The Hybrid Drive System integrates hydraulic and electric servo technologies, enabling intelligent switching between electric (low-load) and hydraulic (high-load) operation for press brakes. This synergy delivers precision, energy efficiency, and reliability.
The use of pedal switch,effectively reduce theworkintensity of the workers,improve the working efficiency.With a mechanical life of over 1 million cycles
High-sensitivity laser safety system with real-time monitoring. Instantly stops ram movement when obstacles are detected, preventing operator injury. Fully compliant with CE safety standards.
The automatic backgauge system of the AUSMA all-electric servo press brake is driven by high-precision servo motors, featuring a dual ball screw and linear guide transmission structure for outstanding speed, stability, and positioning accuracy.
Our press brakes are welded into shape and then machined as a whole using a large gantry CNC machining center, ensuring superior precision and structural integrity.
Compared to traditional welded structures, the nested frame design eliminates distortion and deflection. It ensures stable geometry and maintains machining accuracy over long-term use.
The machine body welding process employs robotic automatic welding combined with manual touch-up welding.Every connection on the press brake frame is welded 10 times, strictly following Multi-layer and multi-pass welding standard for maximum strength and durability.
After the machine body is welded into an integral structure, it undergoes an overall tempering process at a temperature range of 400-650 degrees Celsius, ensuring high consistency in the strength of the machine body.
Once the main frame is integrally fabricated, it is fully sandblasted and coated with one primer layer and two topcoats using eco-friendly water-based paint — ensuring excellent adhesion and a finish that never peels.
Made by high-manganese steel grades Q355 and Q235, which are of the same high-yield-strength steel type as that used in warships, submarines, and cross-sea bridges
The slow bending function allows you to set the bending speed for easy operation. You can also set the position where slow bending starts and the waiting time between steps, with support for digital settings or manual selection, improving processing flexibility and precision control.
The pull-back and bending function is activated after the mold clamps the material. It first performs an up-and-down movement to confirm that the material is securely clamped, thereby preventing interference with the material during the bending process and ensuring smooth processing.
The circular arc bending function enables automatic arc bending by entering spacing, converting steps into smooth curves with precision and consistency for sheet metal applications.
The bending machine’s line marking bending function ensures precise forming by positioning pre-drawn lines and optimizing parameters, molds, and intelligent systems, enhancing efficiency and consistency.
Features a high-definition color touchscreen with embedded PLC, enabling 2D graphical programming, length calculation, and multi-mode operation (graphical tooling up/down, multi-process, telescopic configurations). Supports bending simulation and dual-machine coordination.
Equipped with a high-resolution TFT widescreen display and industrial-grade multi-touch interface for intuitive DELEM UI access. Ergonomic design with shortcut-key operation for simplified programming and user-friendly interaction.
Features a full-touch HMI with 12/15" displays and next-gen controllers, offering high resolution, intuitive interfaces, and smooth operation. Supports 2D graphical programming, 3D bending simulation, DXF file import, efficient tooling editing, and switchable 2D/3D system modes.
Provides comprehensive functionality for press brakes, enabling quick calibration to match machine requirements. Stores multi-step bending processes and product data, supporting manual operation and advanced automation—a powerful yet user-friendly control solution.
