High Precision Bending – Accurate angles, consistent results

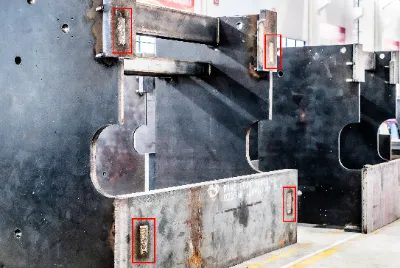

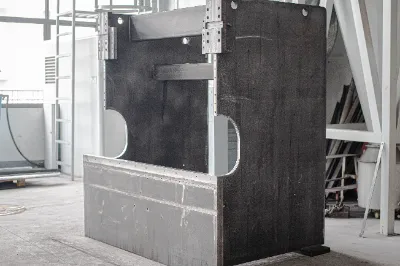

Strong & Durable Structure – Built to last for years
User-Friendly CNC System – Easy to operate, save labor
Energy Efficient – Lower power consumption, cost-saving
Fast Bending Speed – Improve your productivity
Customizable Solutions – Meet your specific needs
High Efficiency and Automation
High Precision and Versatility
Energy Efficiency, Environmental Protection, and Easy Maintenance
Precise and fast: ±0.05 mm accuracy with a cutting speed up to 10 mm/min.
Energy saving and eco-friendly: high-energy-efficiency laser with no pollution.

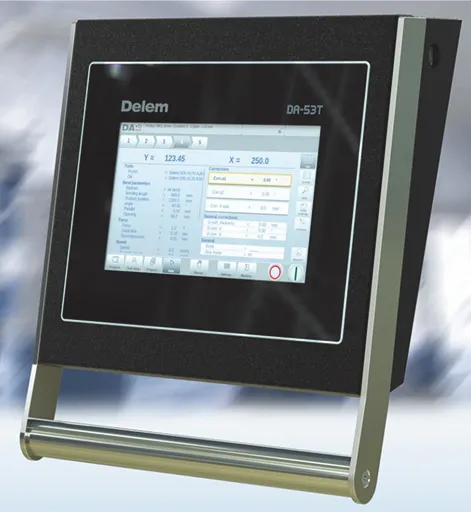

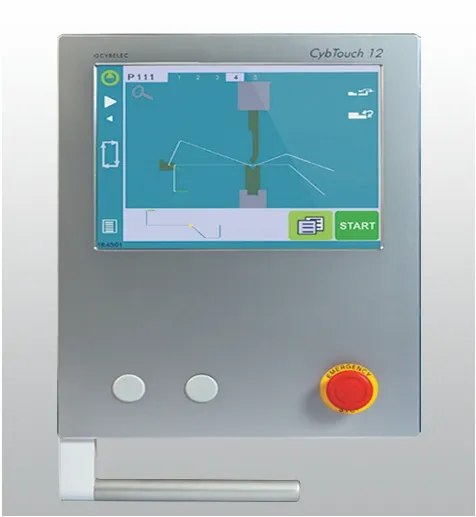

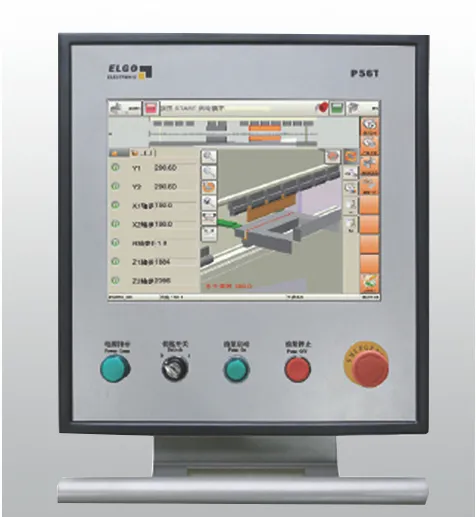

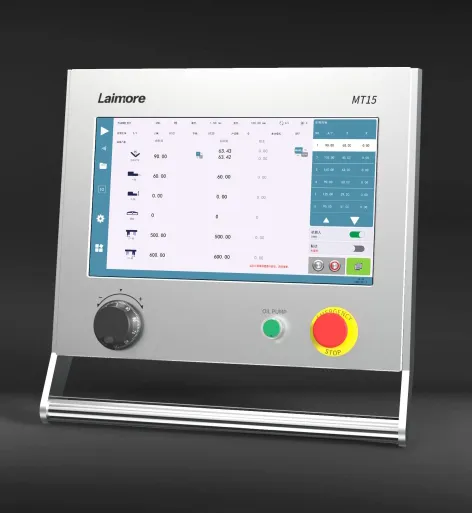

Smart control: advanced CNC for automated operation with consistent accuracy.
Flexible use: cuts complex graphics and irregular materials.

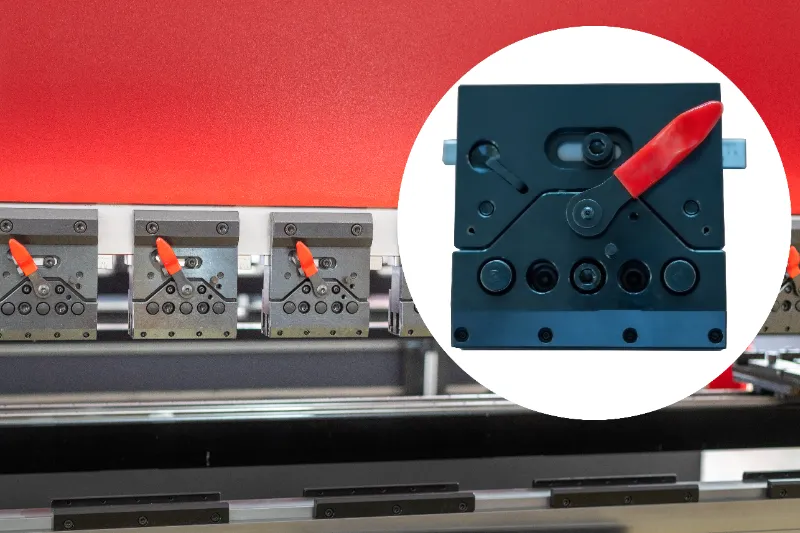

Rapid mold change with a tool library and memory system
Automatic loading/unloading and 24/7 operation
Multi-task processing: 1 machine replaces 3-5

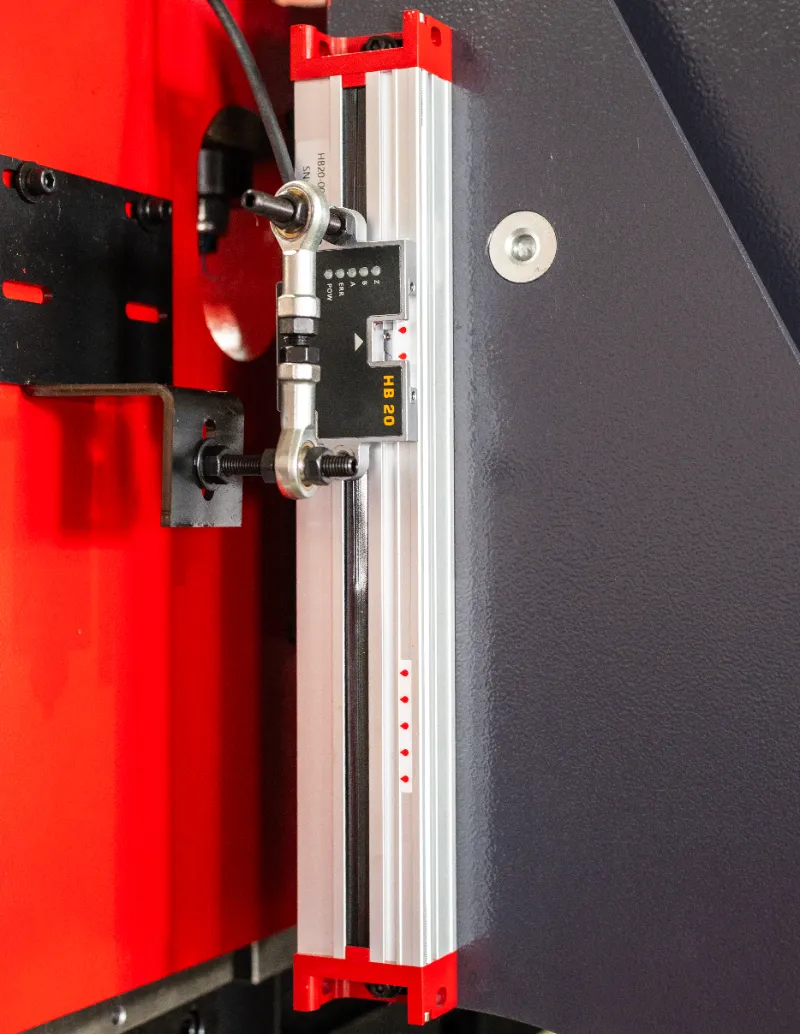

Laser positioning + servo motor compensation, bending error ≤0.1°
Simulation preview: import drawings to simulate the bending process
Ultimate efficiency, reshaping processing speed
Micron-level precision, achieving perfect details
One-click intelligence, operation has never been so simple
Save materials and money, every cut counts
All-rounder, one machine handles complex processes

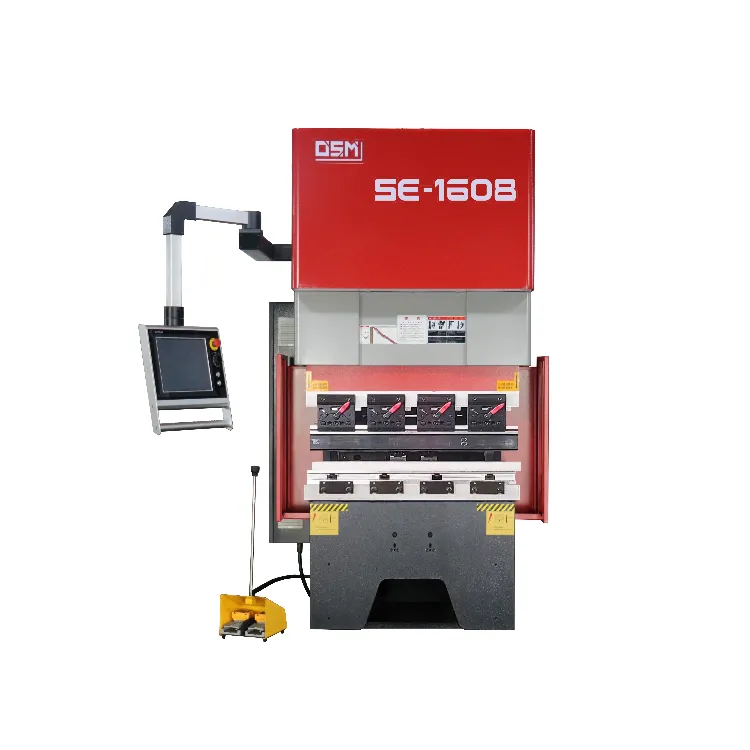

Model: SE-1608
Product Overview:

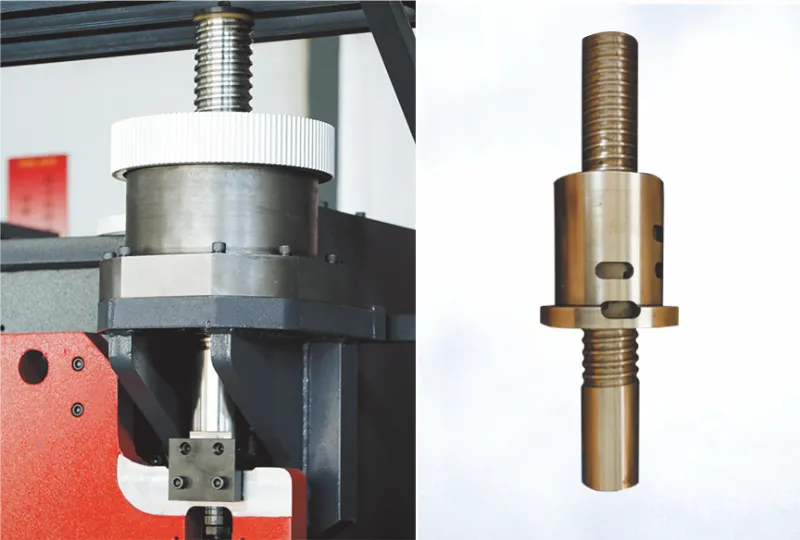

- Dual Servo Drive: Direct-drives high-precision ball screws with closed-loop control for real-time position calibration.
- Precision: ±0.02mm repeatability, millisecond torque response.
- All-Electric Design: Eliminates hydraulic systems, saving energy by 30%, reducing failures by 60% and maintenance by 50%.
- Multi-Axis Flexibility: 1/2/4-axis servo linkage module with CNC intelligent path planning for rapid, continuous bending of complex geometries.
- Performance: Optimized for high-speed thin-sheet processing (0.5–8mm thickness).
Application：
Available for complex parts for the automotive, energy, aerospace, and communication industries.
| Item | Unit | SE-1608 | |
| Nominal Force | KN | 160 | |
| Workbench | MM | 800 | |
| Daylight | MM | 450 | |
| Throat Depth | MM | 220 | |
| Backguage Stroke | MM | 550 | |
| Stroke Distance | MM | 150 | |
| Return Speed | MM/S | 160 | |
| Bending Speed | MM/S | 5-15 | |
| Approach Speed | MM/S | 140-160 | |

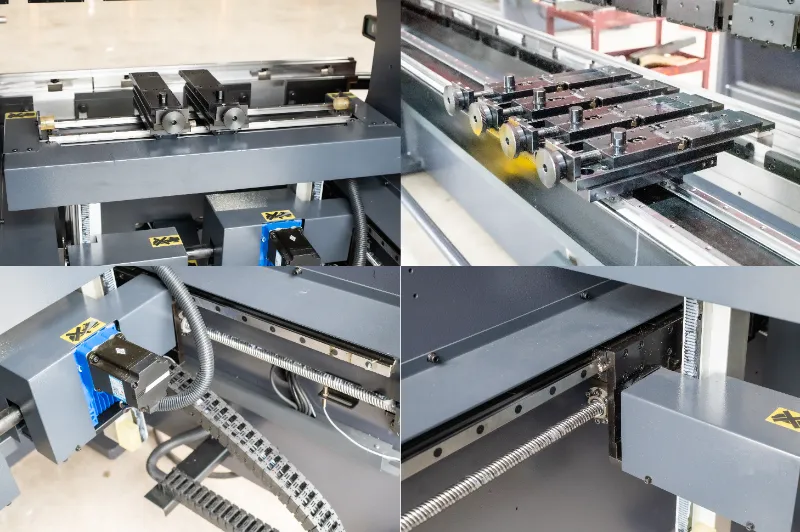

| Backguage Moving Speed | MM/S | 400 | |
| Dimensions（Max.） | Length | MM | 1600 |
| Width | MM | 1120 | |
| Height | MM | 2360 | |
| Total Capacity | KVA | 10.5 | |
| Oil Capacity | L | / | |
| Single Motor Power | KW | 7.5 | |
| Total Controlled Axes | Pcs | 3 | |
| Gross Weight (Approx.） | T | 2.5 | |
After the bending machine is delivered to the customer, our company will provide free equipment commissioning and subsequent on-site operational training tailored to the customer's specific needs. Training personnel will not depart until the buyer's technical staff have fully grasped the technical characteristics, operational procedures, and maintenance knowledge of our CNC bending machine. The training curriculum includes:
