High Precision Bending – Accurate angles, consistent results
Strong & Durable Structure – Built to last for years
User-Friendly CNC System – Easy to operate, save labor
Energy Efficient – Lower power consumption, cost-saving
Fast Bending Speed – Improve your productivity
Customizable Solutions – Meet your specific needs
High Efficiency and Automation
High Precision and Versatility
Energy Efficiency, Environmental Protection, and Easy Maintenance
Precise and fast: ±0.05 mm accuracy with a cutting speed up to 10 mm/min.
Energy saving and eco-friendly: high-energy-efficiency laser with no pollution.
Smart control: advanced CNC for automated operation with consistent accuracy.
Flexible use: cuts complex graphics and irregular materials.
Rapid mold change with a tool library and memory system
Automatic loading/unloading and 24/7 operation
Multi-task processing: 1 machine replaces 3-5
Laser positioning + servo motor compensation, bending error ≤0.1°
Simulation preview: import drawings to simulate the bending process
Ultimate efficiency, reshaping processing speed
Micron-level precision, achieving perfect details
One-click intelligence, operation has never been so simple
Save materials and money, every cut counts
All-rounder, one machine handles complex processes

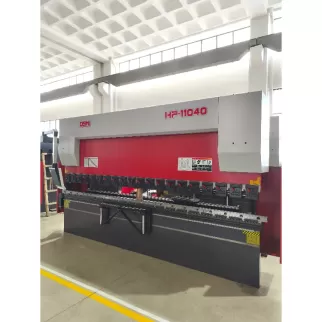

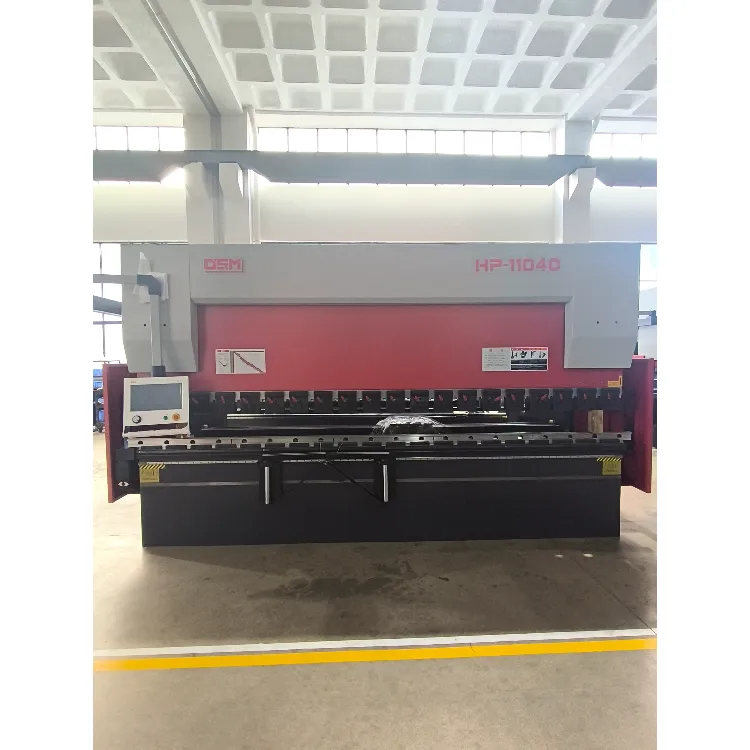

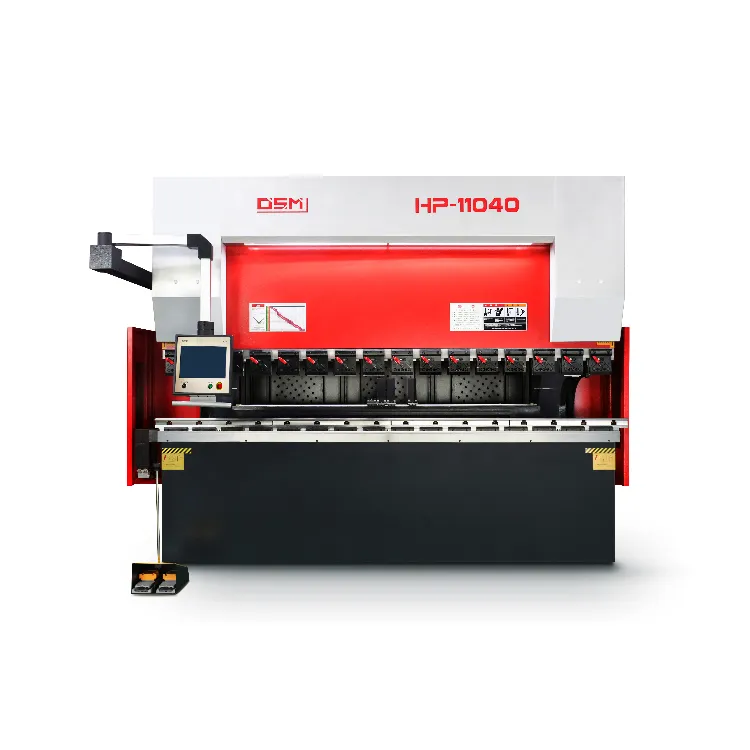

Model: HP-11040
Process: Advanced hydraulic drive system with dynamic energy optimization and pressure-adaptive compensation processes achieves ±0.02mm repeat positioning accuracy and 99.8% long-term operational stability.
Product Overview: The HP series features Laimore/Delem/CybTouch CNC platforms with 4+1-axis standard control (6+1 optional). It is built on a rigid monoblock frame and is equipped with German HAWE/Rexroth hydraulics for tonnage and speed via pressure balancing and multi-stage efficiency. A multi-axis backgauge system enables fast part positioning, while full-loop synchronization ensures precision in high-speed forming, especially for irregular geometries.
Applications: It's ideal for vehicles, batteries, 5G chassis, and aluminum frames. It bends high-strength materials well. Modular tooling and a smart process library support flexible batch production, making it a versatile solution for sheet metal fabrication.
| Item | Unit | HP-11040 | |
| Nominal Force | KN | 1100 | |
| Workbench | MM | 4000 | |
| Daylight | MM | 500 | |
| Throat Depth | MM | 450 | |
| Backguage Stroke | MM | 650 | |
| Stroke Distance | MM | 200 | |
| Return Speed | MM/S | 120-130 | |
| Bending Speed | MM/S | 10-15 | |
| Approach Speed | MM/S | 160-180 | |
| Backguage Moving Speed | MM/S | 350 | |
| Dimensions（Max.） | Length | MM | 4750 |
| Width | MM | 1850 | |
| Height | MM | 2470 | |
| Total Capacity | KVA | 14.5 | |
| Oil Capacity | L | 300 | |
| Single Motor Power | KW | 11 | |
| Total Controlled Axes | Pcs | 4+1/6+1 | |
| Gross Weight (Approx.） | T | 8.5 | |
Specially engineered for CNC press brakes, this system optimizes performance across tonnage ranges with adaptive pressure regulation, pressure balancing blocks for energy efficiency, and long-term output stability.
Foot pedal switch reduces operator fatigue while enhancing operational efficiency. With a mechanical endurance exceeding 1 million cycles, it ensures long-term reliability in industrial environments.
High-sensitivity laser safety system with real-time monitoring capabilities immediately halts ram movement upon obstacle detection, preventing operator injury and fully complying with CE safety standards.
By using the direct control of the digital encoder, the height of the stop of the working table is directly controlled, in order to avoid unnecessary empty travel, greatly improve the production efficiency.
The upper tool quick-clamping device ensures straightforward and stable installation, prevents upper tool displacement, enables rapid release/clamping cycles, and significantly reduces setup time.
The automatic back gauge system of the OSM press brake is driven by high-precision servo motors, featuring a dual ball screw and linear guide transmission structure for outstanding speed, stability, and positioning accuracy.
Our press brakes are welded into shape and then machined as a whole using a large gantry CNC machining center, ensuring superior precision and structural integrity.
Compared to traditional welded structures, the nested frame design eliminates distortion and deflection. It ensures stable geometry and maintains machining accuracy over long-term use.
The machine body welding process employs robotic automatic welding combined with manual touch-up welding.Every connection on the press brake frame is welded 10 times, strictly following Multi-layer and multi-pass welding standard for maximum strength and durability.
After the machine body is welded into an integral structure, it undergoes an overall tempering process at a temperature range of 400-650 degrees Celsius, ensuring high consistency in the strength of the machine body.
Once the mainframe is integrally fabricated, it is fully sandblasted and coated with one primer layer and two topcoats using eco-friendly water-based paint — ensuring excellent adhesion and a finish that never peels.
Made by high-manganese steel grades Q355 and Q235, which are of the same high-yield-strength steel type as that used in warships, submarines, and cross-sea bridges
The slow bending function allows you to set the bending speed for easy operation. You can also set the position where slow bending starts and the waiting time between steps, with support for digital settings or manual selection, improving processing flexibility and precision control.
The pull-back and bending function is activated after the mold clamps the material. It first performs an up-and-down movement to confirm that the material is securely clamped, thereby preventing interference with the material during the bending process and ensuring smooth processing.
The circular arc bending function enables automatic arc bending by entering spacing, converting steps into smooth curves with precision and consistency for sheet metal applications.
The line marking bending function ensures precise forming by positioning pre-drawn lines and optimizing parameters, molds, and intelligent systems, enhancing efficiency and consistency.

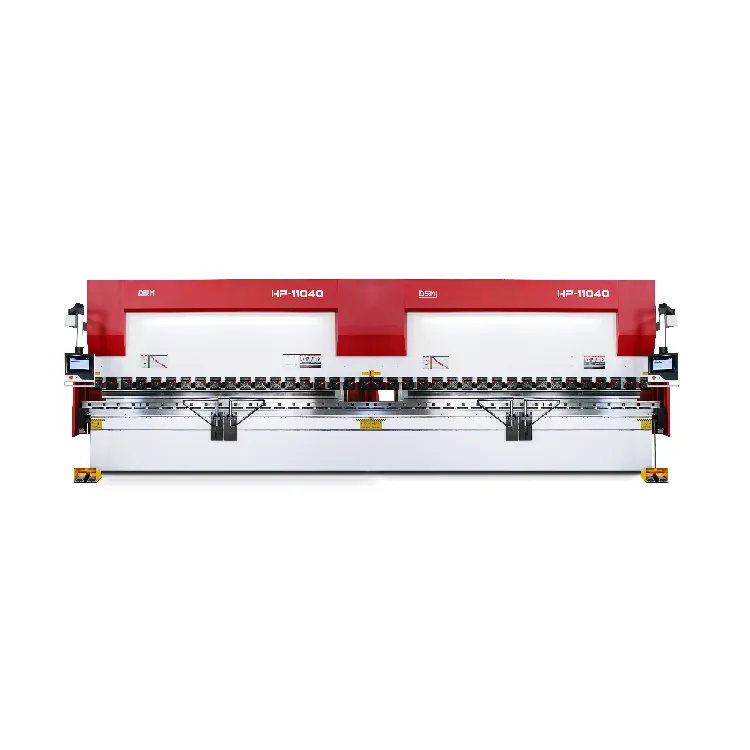

Traditional single-machine press brakes struggle with ultra-long workpieces (elevator panels, marine parts). Dual-Machine Linkage Systems deliver '1+1>2' synergy, redefining efficiency and precision in large-scale sheet metal bending.
Features a high-definition color touch screen with embedded PLC, enabling 2D graphical programming, length calculation, and multi-mode operation (graphical tooling up/down, multi-process, telescopic configurations). Supports bending simulation and dual-machine coordination.
Equipped with a high-resolution TFT widescreen display and industrial-grade multi-touch interface for intuitive DELEM UI access. Ergonomic design with shortcut-key operation for simplified programming and user-friendly interaction.
Features a full-touch HMI with 12/15" displays and next-gen controllers, offering high resolution, intuitive interfaces, and smooth operation. Supports 2D graphical programming, 3D bending simulation, DXF file import, efficient tooling editing, and switchable 2D/3D system modes.
Provides comprehensive functionality for press brakes, enabling quick calibration to match machine requirements. Stores multi-step bending processes and product data, supporting manual operation and advanced automation—a powerful yet user-friendly control solution.
The quality and precision of OSM's press brake are outstanding. We’ve been using it for eight months, and it still maintains exceptional accuracy without any deviation. The robust build and excellent craftsmanship make it a top-tier machine!
The energy-saving mode of OSM's press brake is impressive! Compared to our previous equipment, energy consumption has been reduced by 25%, while production efficiency has increased by 30%. It not only saves costs but also aligns with our green manufacturing standards.
We operate OSM’s press brake 24/7, and it remains highly stable with no need for frequent maintenance. Even under high-intensity production, there have been no malfunctions, significantly boosting our productivity! Their service is very good, remote support is always online.
OSM’s intelligent press brake is equipped with an AI recognition system that automatically detects material thickness and adjusts parameters, reducing manual intervention. It handles different materials and sheet metal shapes effortlessly, greatly enhancing production flexibility!
Our press brake is meticulously engineered for seamless compatibility with mainstream robotic arms, including models from ABB, KUKA, Yaskawa, and FANUC. It guarantees effortless integration into automated production lines while meeting Industry 4.0 standards. The system supports real-time communication, adaptive control, and intelligent coordination to enhance production efficiency and minimize manual intervention. Whether you need a solution for high-mix, low-volume production or large-scale manufacturing, ours delivers the flexibility and efficiency required by modern industrial applications.
