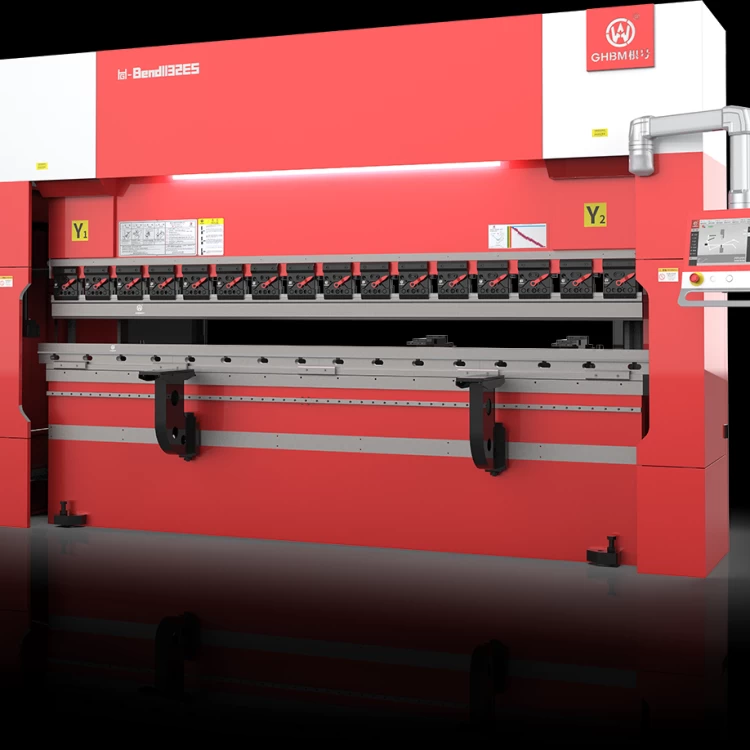

SE Series All-Electric Servo Press Brake

Name: GHBM Dual Servo CNC Bending Machine
Brand: OSM CNC
SKU: GHBM Dual Servo CNC Bending Machine
Availability: InStock

Precision · Efficiency · Clean Power
Low Noise Operation
Simple Mechanical Structure
Fast Bending and Return Speeds
Smart CNC Control
Easy Maintenance
Stable Welded Frame
Eco-Friendly Manufacturing:

OSM SE-3512 all-electric servo CNC press brake, delivering high-precision bending with eco-friendly and energy-saving performance for diverse sheet metal applications.

Precision · Efficiency · Clean Power

Fully Servo-Driven:
No hydraulic system – clean, eco-friendly, and oil-free.

High Precision Ball Screw Drive:
Delivers accurate and stable performance under heavy loads.

Energy Efficient:
Saves over 30% energy compared to traditional hydraulic models.

OSM SE-4015 all-electric servo CNC press brake with high precision, energy efficiency, and eco-friendly performance for advanced sheet metal forming.

Part of the GHBM Series by Guangdong GHBM Digital Technology Co., Ltd. (www.fsghkj.com), No.2 Lianxin South Road, Sanshui District, Foshan, China — BETTER YOU, BETTER GHBM.

Key features

Dual servo synchronous control: two servo motors drive the left/right cylinders with closed-loop feedback that synchronizes the slider, eliminating async error.
Multi-stage programming for complex / nonlinear molding (Z-shaped, curved) — automatic reinforced beams and appliance special-shaped parts.
Strong stability: FEA-optimized welded body with excellent anti-unbalanced-load capacity, suitable for 300 T and up.
About 70% energy saving versus a traditional asynchronous-motor model.
Modular: robot integration (different brands), multi-axis control, intelligent detection, special-process modules and remote O&M.

Available Models

Model	Tonnage (T)	Bend Length (mm)	Weight (kg)
GH-Bend1732ES	170	3200	9200
GH-Bend1742ES	170	4200	12000
GH-Bend2232ES	220	3200	11000
GH-Bend2242ES	220	4200	12600
GH-Bend2632ES	260	3200	13000
GH-Bend2642ES	260	4200	15000
GH-Bend3232ES	320	3200	16500
GH-Bend3242ES	320	4200	20500
GH-Bend3260ES	320	6000	28000
GH-Bend4042ES	400	4200	27000
GH-Bend4060ES	400	6000	32500
GH-W2xBend3232ES	320	3200	16500
GH-W2xBend3242ES	320	4200	20500

Full per-model spec sheets are available on request.
