SE SERIES CNC Servo Up-Acting Press Brake

Model: SE Series
Honors:
- National High-Tech Enterprise
- 54 intellectual property rights and invention patents
- ISO quality system certification
- EU CE and 3C certifications
Address: No. 377, Haitian Avenue, Hecheng Street, Gaoming District, Foshan City, Guangdong Province, China

Process:

All-Electric Drive, Zero Hydraulic System
Over 30% Energy Savings, Low Maintenance, Minimal Operating Costs
Ultra-Fast Dynamic Response (Millisecond Torque Feedback)

Product Overview:
The SE Series top-drive electric servo bending machine utilizes dual servo motor direct-drive high-precision heavy-load ball screws paired with a closed-loop control system for real-time screw position calibration, achieving ±0.02mm repeat positioning accuracy and millisecond-level torque response. By eliminating traditional hydraulic systems, it removes oil leakage risks, reduces structural complexity, and delivers:

60% Lower Fault Rate
50% Reduced Maintenance Costs

Its automated multi-axis servo backgauge system supports 1/2/4-axis configurations with intelligent CNC path planning, enabling rapid positioning and continuous bending for complex workpieces. Optimized for high-speed thin-sheet processing, this machine redefines precision and efficiency in sheet metal forming.

Applications:
Tailored for premium manufacturing sectors including:

Automotive: Precision sheet metal components, lightweight body panels
New Energy: Battery enclosures, hydrogen fuel cell parts
5G Telecom: Filter chambers, antenna brackets
Aerospace: Titanium alloy structural components

Engineered for aluminum, stainless steel, and high-strength steel processing, the SE Series meets full-lifecycle demands from single-piece customization to mass production. With zero hydraulic contamination, ultra-low noise (≤70dB), and 40% higher energy efficiency, it is ideal for cleanroom environments and industries with stringent hygiene standards, such as medical device manufacturing and electronics assembly.

Why Choose SE Series?

Clean, Efficient, and Cost-Effective All-Electric Design
Sub-Micron Precision for Critical Applications
Seamless Integration with Smart Factory Systems

Tags: Press Brake Laser Cutting

Inquiry Contact

Parameter of SE SERIES Press Brake

Model	Nominal Force (kN)	Stroke (MM)	Throat Depth (MM)	Backgauge Travel (MM)	Approach Speed (MM/S)	Bending speed (MM/S)	Return Speed (MM/S)	Backgauge Speed (MM/S)	Power Capacity (KVA)	Length (MM)	Width (MM)	Height (mm)	Weight (T)
SE-1608	160	150	220	550	140–160	5–15	150	350	10.5	1500	1365	2400	2.5
SE-3512	35	150	170	700	140–170	5–15	150	350	30	1700	1300	2400	3.5
SE-4015	400	150	260	700	150–180	10–20	160	400	18.5	2080	1550	2500	4.5
SE-6020	600	150	260	700	120–150	5–10	120	400	33.5	2550	1560	2500	6

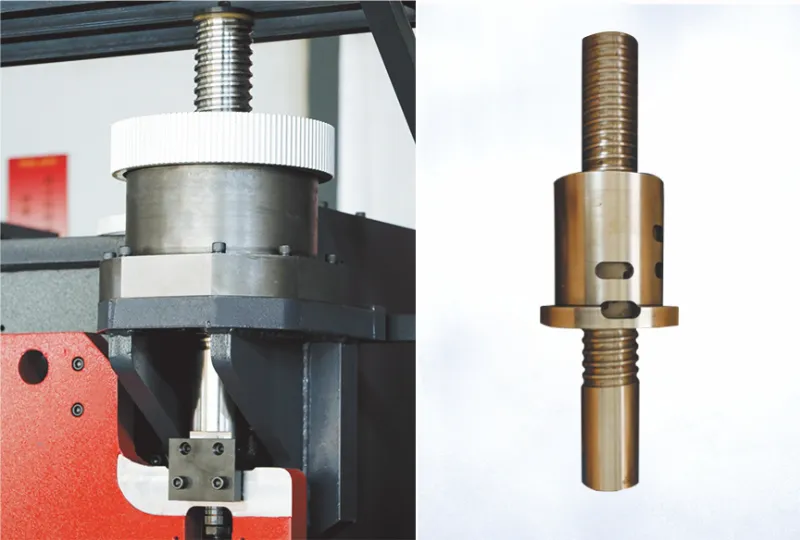

The Transmission System

Unmatched Precision, Millimeter-Level Mastery

The dual-servo motor drive system powers a high-precision heavy-duty screw, driving the worktable for reciprocating motion with stable output force and exceptional transmission accuracy, ensuring consistent bending pressure throughout the process. The CNC system continuously monitors and adjusts the screw's real-time position, maintaining ±0.01mm repeatability accuracy for every stroke cycle.

Lightning-Fast Response, Efficiency Revolutionized

Zero Leakage, Eco-Friendly Manufacturing Benchmark

Intelligent Adaptive Control, Multi-Material Mastery

60% Lower Maintenance Costs, 15-Year Lifespan

SE SERIES Press Brake Details

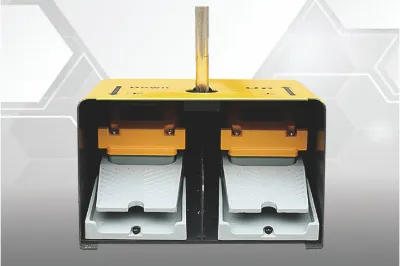

Foot Switch

The use of pedal switch,effectively reduce theworkintensity of the workers,improve the working efficiency.With a mechanical life of over 1 million cycles

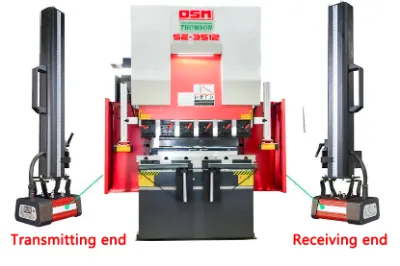

Laser Safety Protection System(Optional)

High-sensitivity laser safety system with real-time monitoring. Instantly stops ram movement when obstacles are detected, preventing operator injury. Fully compliant with CE safety standards.

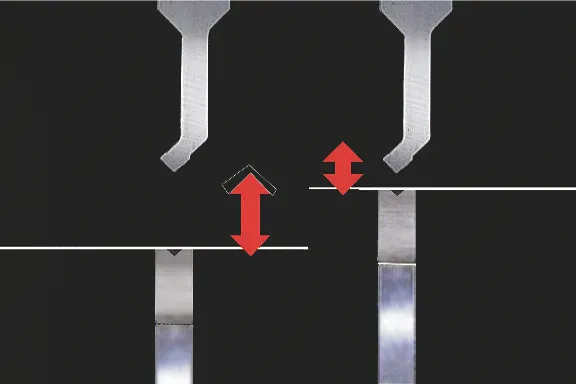

Arbitrary lower limit

By using the direct control of the digital encoder,the height of the stop of the working table is directly controlled,in order to avoid unnecessary empty travel, greatly improve the production efficiency.

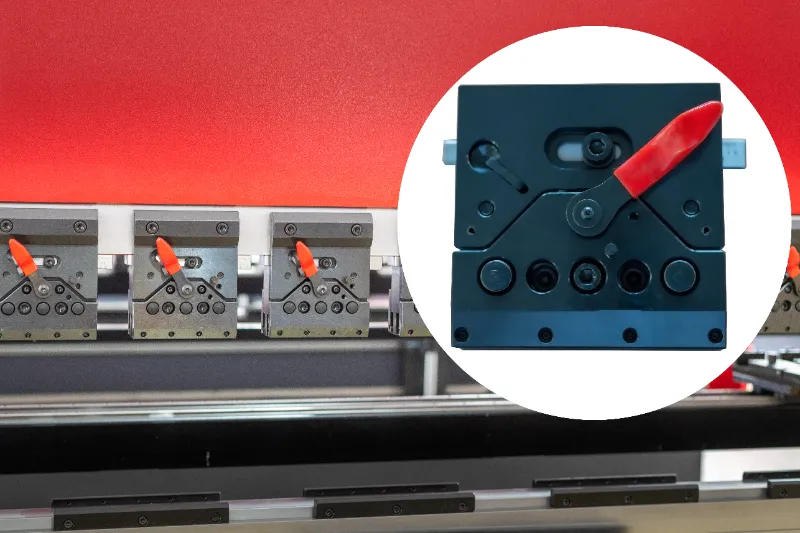

Double Quick Release and Clamping Device

The same with Amada.Quick clamping Device for upper tools, the installation is simple and stable, prevent upper tools falls down, quick release and clamping time, and reduces setting time.

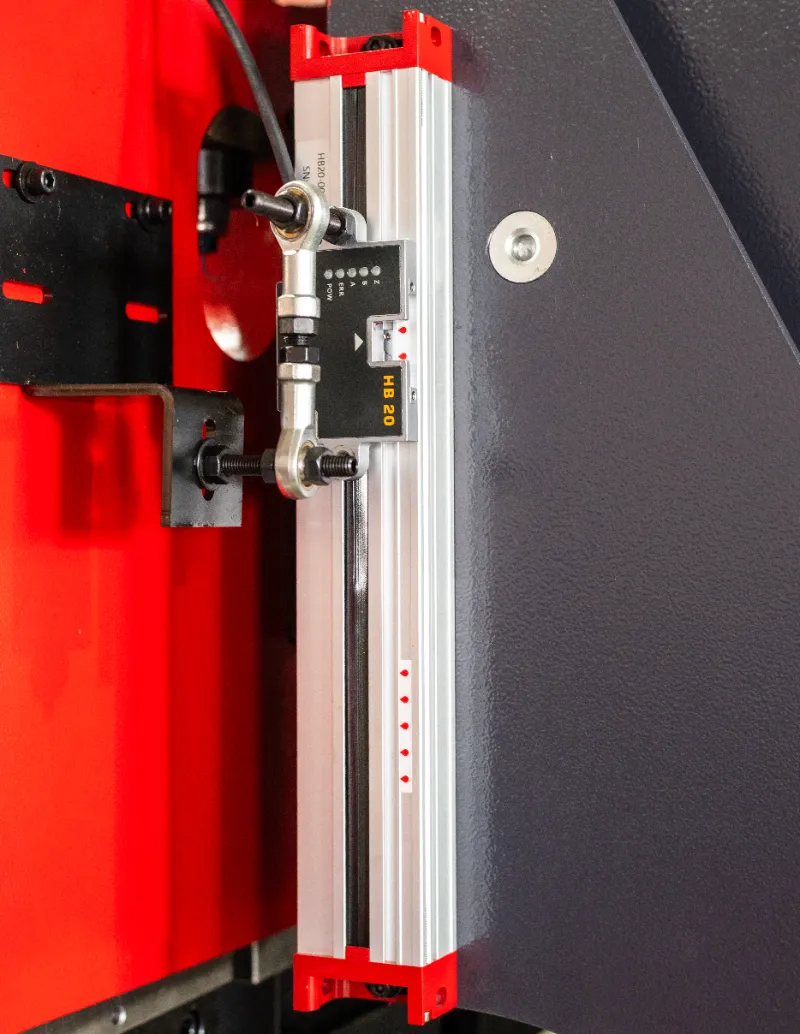

Key Advantages of Precision Linear Scale

Dynamic Compensation Type

Full Closed-Loop Control — Real-time detection and correction of bending displacement errors

Ultra-High Resolution at 0.001mm — Captures every micro-movement with exceptional accuracy

Dual-Axis Independent Monitoring — Ensures precise ram parallelism across the entire stroke

Positioning Accuracy within ±0.005mm — High-precision control across the full range

200kHz High-Speed Feedback System — Faster response and improved stability

Built-in Predictive Compensation Algorithm — Anticipates material springback and adjusts in advance

Adaptive Smart Calibration — Auto-compensates for thermal expansion and material differences

Real-Time Self-Diagnosis — Monitors scale cleanliness and warns of potential contamination

Supports High-Speed Bending (≥200mm/s) — Stable performance under demanding conditions

Over 99.7% Product Yield Rate — Delivers consistent, high-quality bending results

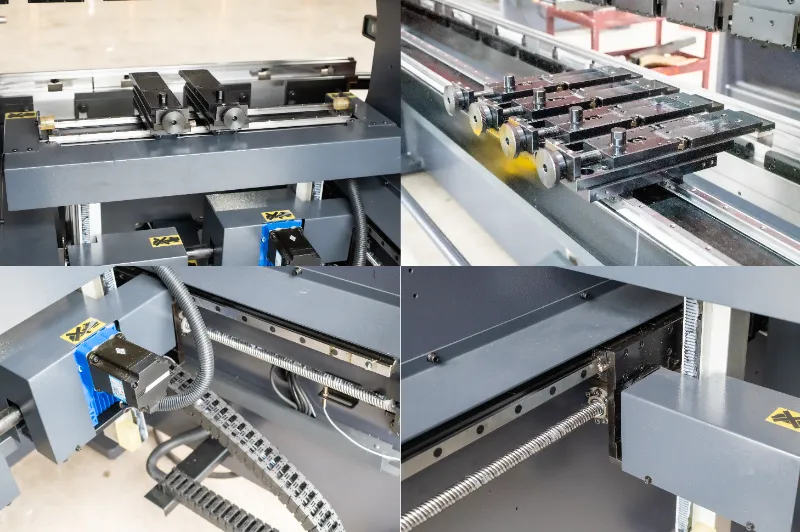

Automatic Backgauge System

Flexible Axis Configuration

The automatic backgauge system of the AUSMA all-electric servo press brake is driven by high-precision servo motors, featuring a dual ball screw and linear guide transmission structure for outstanding speed, stability, and positioning accuracy.

Compact mechanical design ensures high-speed operation with exceptional durability

Dual ball screw and linear guide configuration guarantees repeat positioning accuracy within ±0.05mm

Optional 1-axis, 2-axis, or 4-axis combinations to flexibly meet different bending demands

Intelligent anti-collision detection and memory functions available for enhanced efficiency and safety

Rapid and stable backgauge movement minimizes adjustment time and maximizes productivity

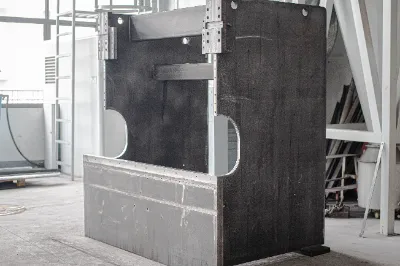

Core Frame Structure

One-Piece CNC Machining

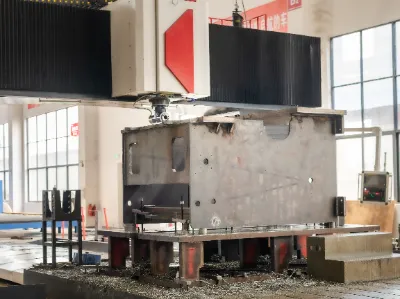

Our press brakes are welded into shape and then machined as a whole using a large gantry CNC machining center, ensuring superior precision and structural integrity.

Interlocking Frame Design

Compared to traditional welded structures, the inset frame design eliminates distortion and deflection. It ensures stable geometry and maintains machining accuracy over long-term use.

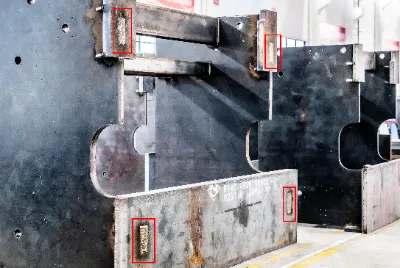

Multi-layer and multi-pass welding

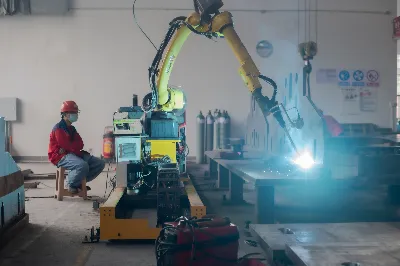

The machine body welding process employs robotic automatic welding combined with manual touch-up welding.Every connection on the press brake frame is welded 10 times, strictly following Multi-layer and multi-pass welding standard for maximum strength and durability.

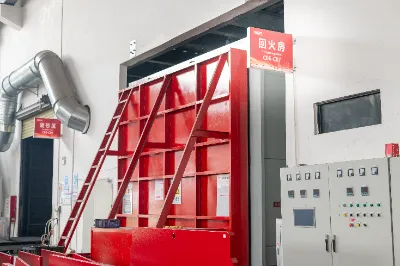

Overall Tempering

After the machine body is welded into an integral structure, it undergoes an overall tempering process at a temperature range of 400-650 degrees Celsius, ensuring high consistency in the strength of the machine body.

Triple-Layer Protective Painting

Once the main frame is integrally fabricated, it is fully sandblasted and coated with one primer layer and two topcoats using eco-friendly water-based paint — ensuring excellent adhesion and a finish that never peels.

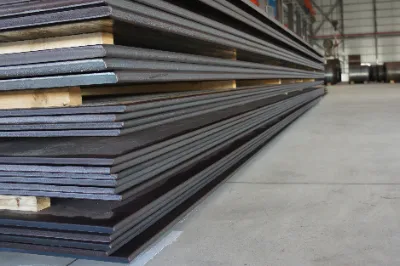

Manufactured using high manganese steel

Made by high-manganese steel grades Q355 and Q235, which are of the same high-yield-strength steel type as that used in warships, submarines, and cross-sea bridges

Industry 4.0 standards

Seamless Integration with Leading Robotic Systems

Our press brake is engineered for seamless compatibility with a wide range of mainstream robotic arms, including models from ABB, KUKA, Yaskawa, and Fanuc. This ensures effortless integration into automated production lines, aligning with Industry 4.0 standards. The system supports real-time communication, adaptive control, and intelligent coordination, enhancing productivity and reducing manual intervention. Whether for high-mix, low-volume production or large-scale manufacturing, our solution offers the flexibility and efficiency required for modern industrial applications.

Seamless Robotic Integration

Smart Control System

High Precision and Consistency

Flexible Production

Industry 4.0 Ready

Press Brake CNC Control System(Optional)

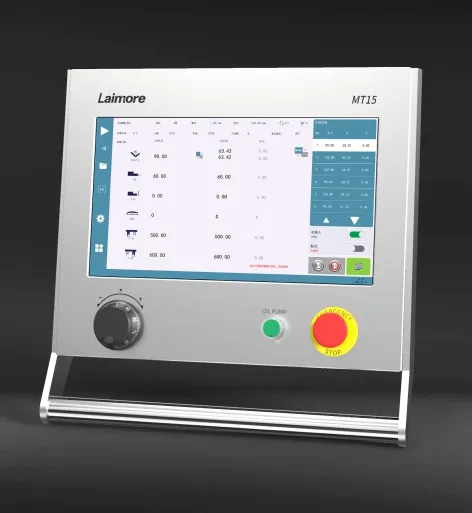

Laimore EL15T/MT15T numerical control system

Laimore System with high-definition color touch screen, built-in PLC, can betwo-dimensional graphics programming, length calculation, support graphical upand down mode, multi-mode, telescopic mode, support simulation bending, two-machine linkage and other functions.

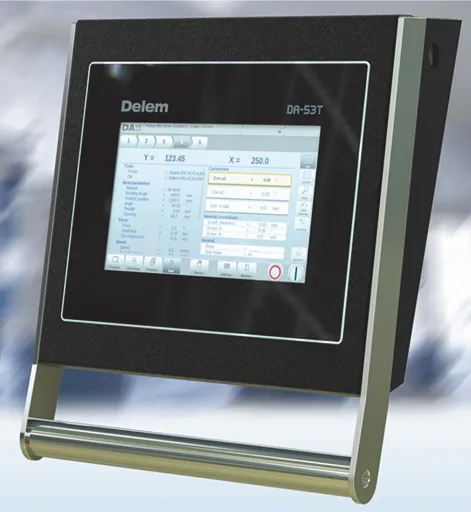

DA-53T numerical control system

DELEM features a high-resolution TFT color widescreen display integrated with an industrial-grade multi-touch screen for easy access to the DELEM user interface. Shortcut keys can be used directly in the programming and processing interface, the overall design is optimized according to ergonomics principles.making the operation more convenient and user-friendly.
