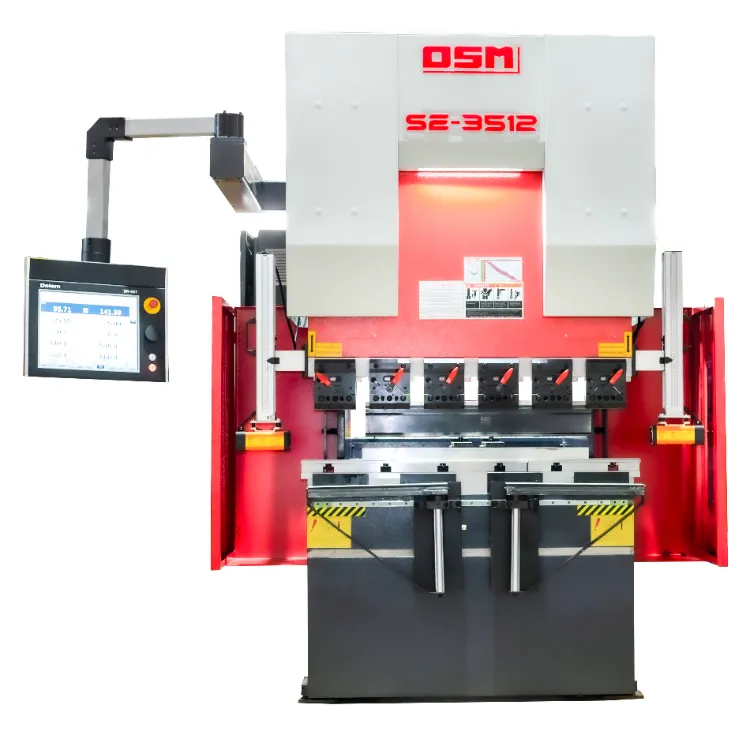

SE Series CNC Pure Electric Servo Press Brake

Model: SE Series
Product Overview:
- Dual Servo Drive: Direct-drives high-precision ball screws with closed-loop control for real-time position calibration.
- Precision: ±0.02mm repeatability, millisecond torque response.
- All-Electric Design: Eliminates hydraulic systems, saving energy by 30%, reducing failures by 60% and maintenance by 50%.
- Multi-Axis Flexibility: 1/2/4-axis servo linkage module with CNC intelligent path planning for rapid, continuous bending of complex geometries.
- Performance: Optimized for high-speed thin-sheet processing (0.5–8mm thickness).
Application：
Available for complex parts of automotive, energy, aerospace, and communication industries.

Inquiry Contact

SE SERIES Press Brake Parameter

Item		Unit	SE-1608	SE-3512	SE-4015	SE-6020
Nominal Force		KN	160	350	400	600
Workbench		MM	800	1250	1500	2000
Daylight		MM	450	450	480	480
Stroke Distance		MM	150	180	180	180
Return Speed		MM/S	160	180	190	170
Bending Speed		MM/S	5-15	5-20	10-20	5-10
Approach Speed		MM/S	140-160	170-200	150-200	120-170
Dimensions（Max.）	Length	MM	1600	1700	2500	2400
	Width	MM	1120	1670	1700	1800
	Height	MM	2360	2420	2500	2400
Total Capacity		KVA	10.5	18.5	33.5	47.5
Single Motor Power		KW	7.5	7.5	15	22
Total Controlled Axes		Pcs	3	6	6	6/6+1
Gross Weight (Approx.）		T	2.5	3.5	4.5	5.8

The Transmission System

Unmatched Precision, Millimeter-Level Mastery

The dual-servo motor drive system powers a high-precision heavy-duty screw, driving the worktable for reciprocating motion with stable output force and exceptional transmission accuracy, ensuring consistent bending pressure throughout the process. The CNC system continuously monitors and adjusts the screw's real-time position, maintaining ±0.01mm repeatability accuracy for every stroke cycle.

Lightning-Fast Response, Efficiency Revolutionized

Zero Leakage, Eco-Friendly Manufacturing Benchmark

Intelligent Adaptive Control, Multi-Material Mastery

60% Lower Maintenance Costs, 15-Year Lifespan

Key Advantages of Precision Magnetic Scale

High Precision and Reliability; Specifically Designed for Bending Machines

High-precision, real-time, closed-loop control detects and corrects bending displacement errors in real time.

5-micron ultra-high resolution; captures every displacement change.

±15 µm positioning accuracy

Supports 150–2000 mm measurement range, suitable for various bending machine specifications.

Adjustable reference point for easy system integration and calibration.

LED display for real-time status monitoring.

Uses a symmetrical adapter for simple installation and enhanced compatibility.

Output signals: Supports push-pull, TTL line drive, and wide voltage line drive outputs, compatible with various control systems.

Protection rating: Meets IP66 standards for dust and water resistance, suitable for harsh industrial environments.

Automatic Backgauge System

Flexible Axis Configuration

The automatic backgauge system of the AUSMA all-electric servo press brake is driven by high-precision servo motors, featuring a dual ball screw and linear guide transmission structure for outstanding speed, stability, and positioning accuracy.

Compact mechanical design ensures high-speed operation with exceptional durability

Dual ball screw and linear guide configuration guarantees repeat positioning accuracy within ±0.05mm

Optional 1-axis, 2-axis, or 4-axis combinations to flexibly meet different bending demands

Intelligent anti-collision detection and memory functions available for enhanced efficiency and safety

Rapid and stable backgauge movement minimizes adjustment time and maximizes productivity

Multi-layer and multi-pass welding

The machine body welding process employs robotic automatic welding combined with manual touch-up welding.Every connection on the press brake frame is welded 10 times, strictly following Multi-layer and multi-pass welding standard for maximum strength and durability.

Triple-Layer Protective Painting

Once the main frame is integrally fabricated, it is fully sandblasted and coated with one primer layer and two topcoats using eco-friendly water-based paint — ensuring excellent adhesion and a finish that never peels.

Industry 4.0 standards

Seamless Integration with Leading Robotic Systems

Our press brake is engineered for seamless compatibility with a wide range of mainstream robotic arms, including models from ABB, KUKA, Yaskawa, and Fanuc. This ensures effortless integration into automated production lines, aligning with Industry 4.0 standards. The system supports real-time communication, adaptive control, and intelligent coordination, enhancing productivity and reducing manual intervention. Whether for high-mix, low-volume production or large-scale manufacturing, our solution offers the flexibility and efficiency required for modern industrial applications.

Seamless Robotic Integration

Smart Control System

High Precision and Consistency

Flexible Production

Industry 4.0 Ready

Press Brake CNC Control System (Optional)

Laimore EL15T/MT15T Numerical Control System

Features a high-definition color touchscreen with embedded PLC, enabling 2D graphical programming, length calculation, and multi-mode operation (graphical tooling up/down, multi-process, telescopic configurations). Supports bending simulation and dual-machine coordination.

Delem DA-53T Numerical Control System

Equipped with a high-resolution TFT widescreen display and industrial-grade multi-touch interface for intuitive DELEM UI access. Ergonomic design with shortcut-key operation for simplified programming and user-friendly interaction.

Our Clients' Feedback

The quality and precision of OSM's bending machine are outstanding. We’ve been using it for eight months, and it still maintains exceptional accuracy without any deviation. The robust build and excellent craftsmanship make it a top-tier machine!

Procurement Manager, Metal Processing Company, Germany

The energy-saving mode of OSM's bending machine is impressive! Compared to our previous equipment, energy consumption has been reduced by 25%, while production efficiency has increased by 30%. It not only saves costs but also aligns with our green manufacturing standards.

CEO, Automotive Parts Manufacturer, Spain

We operate OSM’s bending machine 24/7, and it remains highly stable with no need for frequent maintenance. Even under high-intensity production, there have been no malfunctions, significantly boosting our productivity! Their service is very good, remote support is always online.

Technical Director, Aerospace Manufacturing Company, USA

OSM’s intelligent bending machine is equipped with an AI recognition system that automatically detects material thickness and adjusts parameters, reducing manual intervention. It handles different materials and sheet metal shapes effortlessly, greatly enhancing production flexibility!
