OG-60III CNC Hydraulic Down-Acting Press Brake

Model: OG-60III

Product Overview:
The OG series of bending machines forms multi-thickness sheet metal with high precision through a hydraulic down-acting dual-guide structure and an inclined wedge micro-adjustment compensation system. When combined with a dual-sided quick-release mold assembly and a low-fault hydraulic system, they efficiently and stably process various shaped workpieces.

Application:
The hydraulic bending machine uses three synchronized hydraulic cylinders and FR bending technology for high precision (±0.5°) and complex curved surface processing. It is suitable for various components and fields, meeting the needs of both small-batch and mass production.

Inquiry Contact

Item		Unit	OG-60Ⅲ
Nominal Force		KN	600
Workbench		MM	2000
Bending Length		MM	2200
Colume Distance		MM	1690
Stroke Distance		MM	100
Max. Daylight		MM	400
Approach Speed		MM/S	50-63
Bending Speed		MM/S	1-11
Return Speed		MM/S	40
Dimensions（Max.）	Length	MM	2200
	Width	MM	1400
	Height	MM	2200
Mian Motor Power		KW	5.5
Total Power		KW	7
Power Supply Cable		M㎡	4
Gross Weight (Approx.）		KG	3350

Industry Applications: new energy, electronics and electrical appliances, 5G products, server racks and cabinets, filing cabinets, kitchenware, range hoods, air purification equipment, etc.

Downward-Acting Hydraulic Bending Machine: A Cost-Effective Domestic Option

High Efficiency, Consistent Precision

Engineered for precision metal bending, delivering high-speed accuracy with consistent quality across both thick and thin materials while minimizing labor and time costs.

Versatile Mold for Broad Applications

Customized upper/lower die configurations enable complex workpiece forming, satisfying diverse processing requirements and adapting to variable order specifications.

Integrated Hydraulic System for Reliable Operation

Features a down-acting hydraulic structure with integrated design for simplified maintenance, low failure rates, and reliable long-term operation.

Dual Guide Structure Ensuring Angular Consistency

Dual safeguard system combining cylinder side guidance and upper stopper positioning ensures smooth ram movement and repeatable bending angle accuracy.

Automatic Upper Mold Compensation for Enhanced Precision

Equipped with tapered wedge fine-tuning compensation and rapid clamping mechanisms for automatic angle correction, reducing deviations and enhancing part consistency.

Cost-Effective Domestic Alternative with Dedicated Service

Delivers optimal cost-effective performance with localized technical support and prompt after-sales service, making it the preferred choice for mid-to-high-end users.

OG Series Press Brake Details

Foot Switch

The use of foot pedal switch, effectively reduce the work intensity of the workers, improve the working efficiency. With a mechanical life of over 1 million cycles

Handwheel Control for D & L Axes

When the first piece of the workpiece bending test is performed, the use of the hand wheel adjustment function greatly facilitates the understanding of the operation and improves security.

Arbitrary lower limit

By using the direct control of the digital encoder,the height of the stop of the working table is directly controlled,in order to avoid unnecessary empty travel, greatly improve the production efficiency.

Double Quick Release and Clamping Device

The same with Amada.Quick clamping Device for upper tools, the installation is simple and stable, prevent upper tools falls down, quick release and clamping time, and reduces setting time.

Hydraulic Cylinder

High-Performance Hydraulic Cylinder

Enhanced Strength: Constructed from high-strength alloy steel, the cylinder body offers a 30% increase in pressure resistance, ensuring reliable performance under high-load and high-frequency bending operations.

Precision Control: The advanced hydraulic control system delivers rapid response times (≤0.1 seconds) with a positioning accuracy of ±0.05 mm, guaranteeing precise bending angles.

Advanced Sealing: Utilizing nano-level sealing technology, the cylinder is highly resistant to wear and leakage, effectively doubling its service life and reducing maintenance costs.

Energy Efficiency: The low-energy-consumption hydraulic circuit design achieves a 25% energy savings compared to traditional cylinders, contributing to lower operational costs.

Overpressure Protection: Features automatic pressure relief when pressure exceeds safe limits, safeguarding the equipment from potential damage.

Core Frame Structure

One-Piece CNC Machining

Our press brakes are welded into shape and then machined as a whole using a large gantry CNC machining center, ensuring superior precision and structural integrity.

Nested Frame Design

Compared to traditional welded structures, the nested frame design eliminates distortion and deflection. It ensures stable geometry and maintains machining accuracy over long-term use.

Multi-layer and multi-pass welding

The machine body welding process employs robotic automatic welding combined with manual touch-up welding.Every connection on the press brake frame is welded 10 times, strictly following Multi-layer and multi-pass welding standard for maximum strength and durability.

Overall Tempering

After the machine body is welded into an integral structure, it undergoes an overall tempering process at a temperature range of 400-650 degrees Celsius, ensuring high consistency in the strength of the machine body.

Triple-Layer Protective Painting

Once the main frame is integrally fabricated, it is fully sandblasted and coated with one primer layer and two topcoats using eco-friendly water-based paint — ensuring excellent adhesion and a finish that never peels.

Manufactured Using High Manganese Steel

Made by high-manganese steel grades Q355 and Q235, which are of the same high-yield-strength steel type as that used in warships, submarines, and cross-sea bridges

OG SERIES CNC Control System

Smart And Easy

1.TFT Touchscreen Interface: Features a vibrant TFT color LCD touchscreen for intuitive, dialog-based data entry, either directly or via a remote handwheel.
2.High-Precision Control: Equipped with Keyence digital controller and Mitsubishi servo amplifier, enhancing stability and precision. Supports up to 999 preset programs.
3.Synchronized Axis Control: Integrates L-axis (backgauge) and D-axis (depth) controls for synchronized operation.
4.Direct Input Mode: Operators input L and D values; the system auto-sets other parameters from its database.
5.Angle Input Mode: By entering material thickness, type, bend length, angle, and tooling, the system calculates axis positions automatically.
6.User-Friendly Operation: Designed for ease of use with minimal training, faster processing, and simplified maintenance.

OG Series Back Gauge Assembly

Fully\Semi-Automatic Back Gauge Assembly (Optional)

The advantages of two and a half axis\three-axis stop finger:
A. Linear guide rail design for rear positioning with free sliding, enabling user-friendly operation.
B. Single-side manual/electric adjustment mechanism for rapid and precise height control of the rear positioning.

Manual Back Gauge Assembly (Stardard Configuration)

A. Steel ruler with high rigidity and hardness, resistant to deformation; equipped with manual adjustable positioning stops for easy disassembly/relocation and diverse bending applications.
B. Single-side height adjustment capability accommodates irregularly shaped products with simple operation.

Powerful bending function

Slow bending function

The slow bending function allows you to set the bending speed for easy operation. You can also set the position where slow bending starts and the waiting time between steps, with support for digital settings or manual selection, improving processing flexibility and precision control.

Pull-back and bending function

The pull-back and bending function is activated after the mold clamps the material. It first performs an up-and-down movement to confirm that the material is securely clamped, thereby preventing interference with the material during the bending process and ensuring smooth processing.

Circular arc bending function

The circular arc bending function enables automatic arc bending by entering spacing, converting steps into smooth curves with precision and consistency for sheet metal applications.

Line marking bending function

The bending machine’s line marking bending function ensures precise forming by positioning pre-drawn lines and optimizing parameters, molds, and intelligent systems, enhancing efficiency and consistency.

OG SERIES Press Brake Photos

OG SERIES Drawing

Dimensoins

	OG-35	OG-50	OG-50L	OG-60	OG-100	OG-150(3m)	OG-150(4m)
A	1400	1400	2000	2170	3090	3300	4200
B	1210	1210	1500	2020	3000	3200	4000
C	1010	1020	1320	1700	2550	2550	3100
D	300	400	400	400	400	400	400
E	280	280	280	280	280	280	280
F	400	400	400	400	400	400	400
G	60	60	60	60	90	90	90
H	1960	1960	2000	2020	2300	2400	2400
I	1210	1220	1500	1900	2800	2800	3350
J	950	950	950	950	1030	1030	1030
L	1065	1290	1290	1290	1390	1500	1500

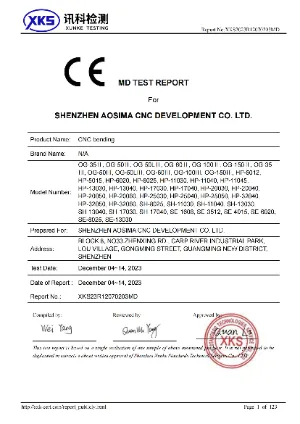

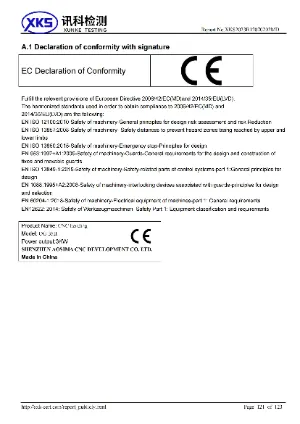

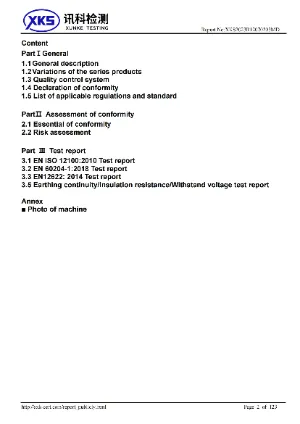

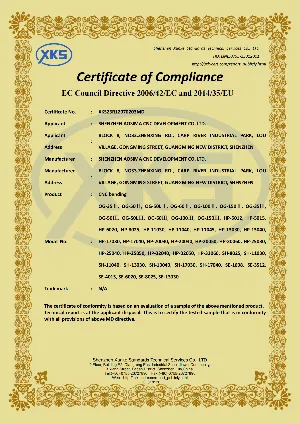

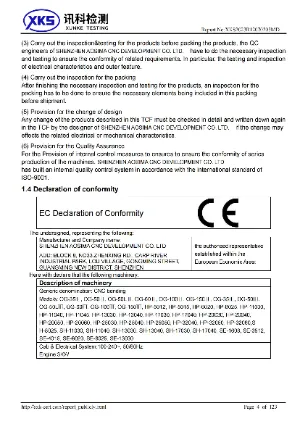

EU CE Certificate and Test Report

On-site door-to-door training

After the bending machine is delivered to the customer, our company will provide free equipment commissioning and subsequent on-site operational training tailored to the customer's specific needs. Training personnel will not depart until the buyer's technical staff have fully grasped the technical characteristics, operational procedures, and maintenance knowledge of our CNC bending machine. The training curriculum includes:

Introduction to Structure and Function

Basic Operation Training

Explanation of System Components

Advanced Operational Skills

Solutions for Common Faults

Routine Maintenance and Care

They are using our machines

Our Clients' Feedback

The quality and precision of OSM's bending machine are outstanding. We’ve been using it for eight months, and it still maintains exceptional accuracy without any deviation. The robust build and excellent craftsmanship make it a top-tier machine!

Procurement Manager, Metal Processing Company, Germany

The energy-saving mode of OSM's bending machine is impressive! Compared to our previous equipment, energy consumption has been reduced by 25%, while production efficiency has increased by 30%. It not only saves costs but also aligns with our green manufacturing standards.

CEO, Automotive Parts Manufacturer, Spain

We operate OSM’s bending machine 24/7, and it remains highly stable with no need for frequent maintenance. Even under high-intensity production, there have been no malfunctions, significantly boosting our productivity! Their service is very good, remote support is always online.

Technical Director, Aerospace Manufacturing Company, USA

OSM’s intelligent bending machine is equipped with an AI recognition system that automatically detects material thickness and adjusts parameters, reducing manual intervention. It handles different materials and sheet metal shapes effortlessly, greatly enhancing production flexibility!

Production Supervisor, Electrical Enclosure Manufacturer, Turkey

Industry 4.0 standards

Seamless Integration with Leading Robotic Systems

Our press brake is engineered for seamless compatibility with a wide range of mainstream robotic arms, including models from ABB, KUKA, Yaskawa, and Fanuc. This ensures effortless integration into automated production lines, aligning with Industry 4.0 standards. The system supports real-time communication, adaptive control, and intelligent coordination, enhancing productivity and reducing manual intervention. Whether for high-mix, low-volume production or large-scale manufacturing, our solution offers the flexibility and efficiency required for modern industrial applications.

Seamless Robotic Integration

Smart Control System

High Precision and Consistency

Flexible Production

Industry 4.0 Ready
