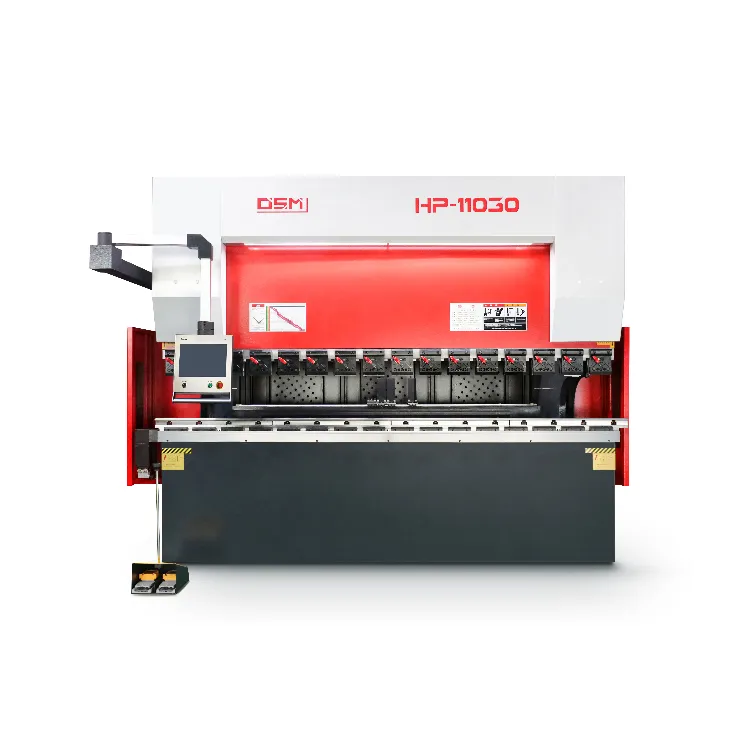

HP Series CNC Hydraulic Up-Acting Press Brake

Model: HP Series

Process: Dual-closed-loop servo drives and dynamic energy optimization cut energy use by 35% and boost response by 50%. Pressure adaptive compensation ensures ±0.01mm repeatability, 99.8% uptime stability, and 40% lower operating costs.

Product Overview: The HP series features Laimore/Delem/CybTouch CNC platforms with 4+1-axis standard control (6+1 optional). It is built on a rigid monoblock frame and is equipped with German HAWE/Rexroth hydraulics for tonnage and speed via pressure balancing and multi-stage efficiency. A multi-axis backgauge system enables fast part positioning, while full-loop synchronization ensures precision in high-speed forming, especially for irregular geometries.

Applications: It's ideal for vehicles, batteries, 5G chassis, and aluminum frames. It bends high-strength materials well. Modular tooling and a smart process library support flexible batch production, making it a versatile solution for sheet metal fabrication.

Inquiry Contact

HP SERIES Press Brake Parameter

Item		Unit	HP-5015	HP-6020	HP-8025	HP-11030	HP-11040	HP-13030	HP-13040	HP-17030	HP-17040	HP-20030	HP-20040	HP-20050	HP-25040	HP-25050	HP-32040	HP-32050
Nominal Force		KN	500	600	800	1100	1100	1300	1300	1700	1700	2000	2000	2000	2500	2500	3200	3200
Workbench		MM	1500	2000	2500	3200	4000	3200	4000	3200	4000	3200	4000	5000	4000	5000	4000	5000
Daylight		MM	460	460	460	500	500	500	500	500	500	500/550	500/550	500/550	500/550	500/550	550/600	550/600
Stroke Distance		MM	160	160	160	200	200	200	200	200	200	200	200	200	250	250	300	300
Return Speed		MM/S	150	150	140-150	120-160	120-130	110-120	110-120	130-140	120-130	120-137	110-125	105-115	100-115	95-110	85-110	80-100
Bending Speed		MM/S	8-12	8-12	8-12	10-15	10-15	9-14	9-14	9-14	9-14	8-9.5	8-9	7-8	6-8	5-8	7-9.5	6-8
Approach Speed		MM/S	160	200	140-160	160-180	160-180	160-180	150-175	140-160	130-150	120-140	110-135	100-120	100-110	90-105	75-100	70-85
Dimensions（Max.）	Length	MM	2450	2650	3180	3950	4750	3950	4750	4000	4650	4000	4680	5500	4670	5600	4800	5600
	Width	MM	1700	1850	1700	1900	1850	1850	1850	1800	1900	2050	1900	2000	1750	2200	2300	2400
	Height	MM	2370	2380	2380	2450	2470	2550	2570	2650	2650	2780	2820	2850	2750	2900	3700	3700
Total Capacity		KVA	6	9.5	10	14.5	14.5	18.5	18.5	21.5	21.5	21.5	21.5	21.5	21.5	21.5	24.5	24.5
Single Motor Power		KW	4	7.5	7.5	11	11	15	15	18.5	18.5	18.5	18.5	18.5	18.5	18.5	22	22
Total Controlled Axes		Pcs	4/6	4/6	4/6	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1	4+1/6+1
Gross Weight (Approx.）		T	4	4.7	5.8	7.6	8.5	8	9.6	8.8	10.8	11.2	13	18	15.89	19	24	28
